How to install MK8 Euro tail lights on a MK8 or MK8.5

Written by the EuroCustomAutos workshop — Mississauga, ON. Last updated August 2026. We fit MK8 and MK8.5 Euro tail lights for customers across the GTA.

Before you start

There is no coding in this job, which surprises people — the sweeping turn signals are triggered by a wire, not by software. What the job does need is patience with trim clips and one clean splice into a live 12 V feed. Five things worth knowing before you open the hatch:

• Read the whole guide first. Step 13 asks you to choose between two ways of routing the harness. Decide which before you start pulling trim apart.
• Everything gets done twice. Unless a step says otherwise, do it on the driver's side and the passenger's side.
• You will be cutting and splicing. Step 2 trims a tab off a factory plug and Step 19 taps a factory wire. Both are reversible with a replacement pigtail, but go slowly.
• Trim clips break if you force them. Every "pop it out" step here wants steady pressure in the direction shown, not leverage.
• Keep the hardware sorted. There are T25 screws and 8 mm nuts of a few different lengths — bag them per side as they come out.

Tools you'll need

• T25 Torx bit and driver — the four hatch trim screws (Step 8) and two bolts per outer tail light (Steps 11 and 14)
• 8 mm socket and ratchet — the inner tail light nut, one per side (Steps 3 and 15)
• Trim pry tool and wedge tool — headliner clips, the grommet, the bezels and the trunk liner (Steps 5, 6, 7, 10 and 12)
• Razor blade or sharp knife — trimming the centre tab off the factory plug (Step 2)
• Wire fish or fish tape — pulling the link harness through the hatch (Step 13)
• Wire taps and splice connectors, plus 20 AWG wire — the 12 V sweep tap at the camera module (Step 19)
• Cloth tape for re-taping the loom, and nitrile gloves

What's in the box

• 2 × inner tail lights — these mount to the hatch
• 2 × outer tail lights — these mount to the quarter panel
• 2 × adapter harness pairs — per side, one 8-pin → 4-pin harness and one 4-pin → 6-pin harness, which chain together. Custom made by us for North American cars.
• 2 × black link harnesses — a 2-wire harness in black rubber sheathing that carries turn signal and reverse from the inner light out to the outer light on the same side

Count everything against this list before you start. A missing harness is much easier to deal with before the car is in pieces.

The wiring, explained

Understand this table and the wiring steps become pure execution. There are only a handful of connections in the whole job.

Every connector in this kit is keyed and clicks when it seats. If one needs force, it's the wrong one — count the pins before you push.

Steps 1–9 — Open up the hatch

Disconnect the negative battery terminal first. This whole phase is about getting the inner lights out and the hatch trim off so you have a clear run for the harness. Budget about 45 minutes.

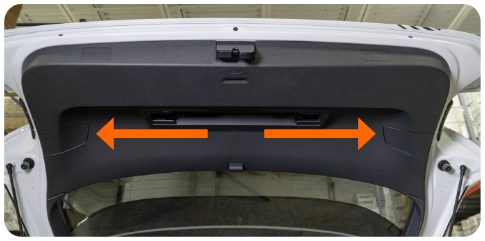

1. Remove the two access covers. Open the rear hatch and pull off the two covers on the inside that expose the tail light plugs.

2. Cut the centre tab off the tail light plug. Disconnect the plug from the tail light. With a razor blade, carefully cut off the centre tab on the male end. Do this on both the driver and passenger side plugs. Take your time — the plug still has to seat properly afterwards.

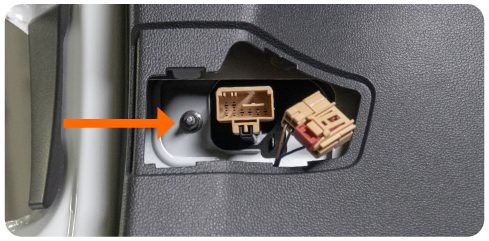

3. Remove the inner tail light nut. Using an 8 mm socket, remove the nut holding the inner tail light to the hatch.

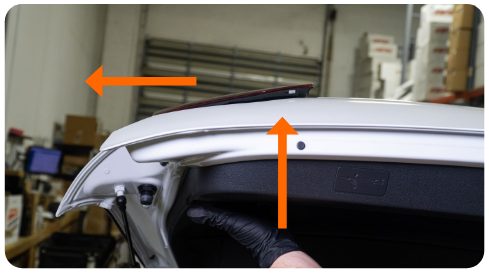

4. Take the inner tail light out. Push it upwards first, then out and away from the hatch.

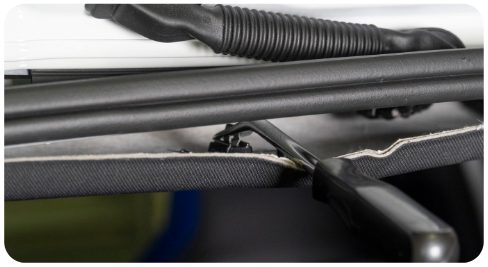

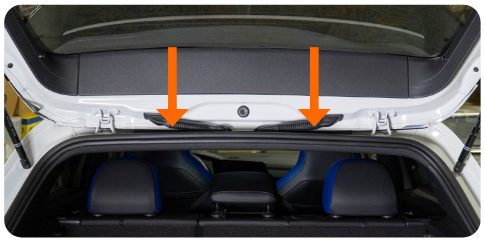

5. Release the two headliner clips. Using a pry tool or wedge tool, gently disconnect the two clips holding the headliner. This exposes the opening for the hatch wiring loom grommet.

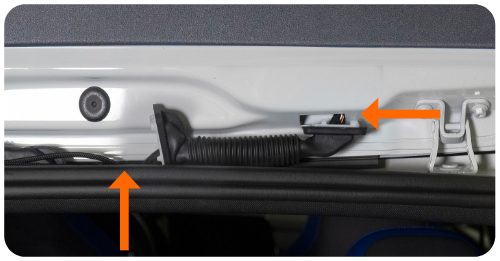

6. Pop out the hatch wiring loom grommet — passenger side only. Press in on the tab of the bottom grommet and push upwards to release it. Then press in on the tab of the top grommet and push downwards. Easy does it — too much force snaps the tab, and there's no good way to reseat a broken one.

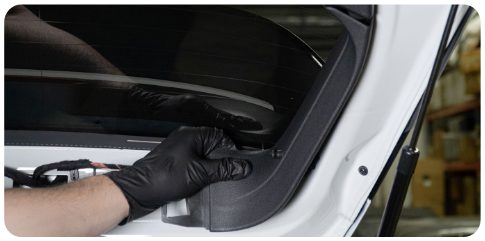

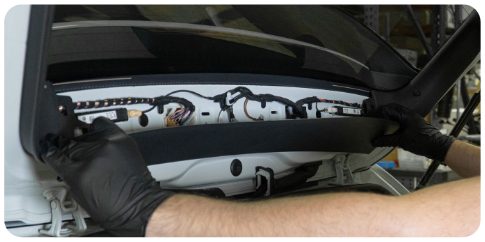

7. Remove the rear window trim pieces. Take off the middle piece and both side pieces that run along the rear window of the hatch, pulling evenly outwards. Even pressure across the piece — don't lever from one corner.

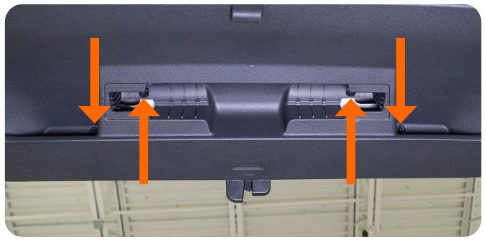

8. Remove the four T25 screws. Using a T25, take out the four screws holding the large trim panel to the hatch.

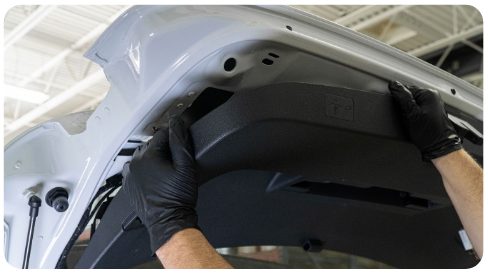

9. Pull the hatch trim panel off. With the screws out, pull down along the sides of the panel to unseat all the clips, then remove it completely.

Steps 10–12 — Remove the outer tail lights

Both sides, about 25 minutes.

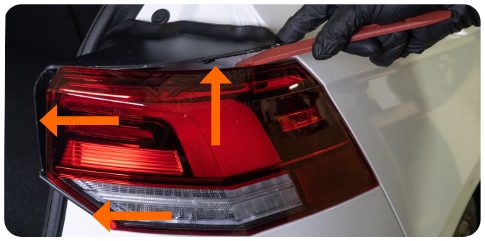

10. Pry off the tail light bezel. Gently pry the bezel away at the three locations arrowed below. Work around them in turn rather than forcing any one corner.

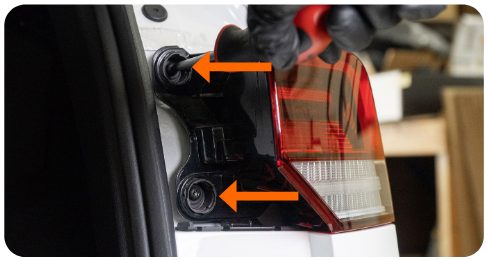

11. Remove the two T25 bolts and pull the light. Take out the two bolts holding the outer tail light in, pull the light away from the body and disconnect the plug on the back. That plug is the car's factory 6-pin — leave it where you can reach it, because the adapter harness plugs back into it in Step 16.

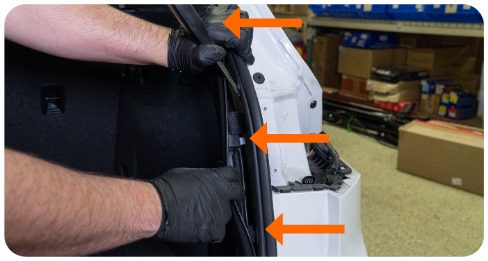

12. Pull the trunk liner off its three metal tabs. Using a tool as a wedge for your fingers, carefully pull back on the liner until it releases from the three metal tabs. This is what gives you access to fish the wiring through.

Step 13 — Route the link harness

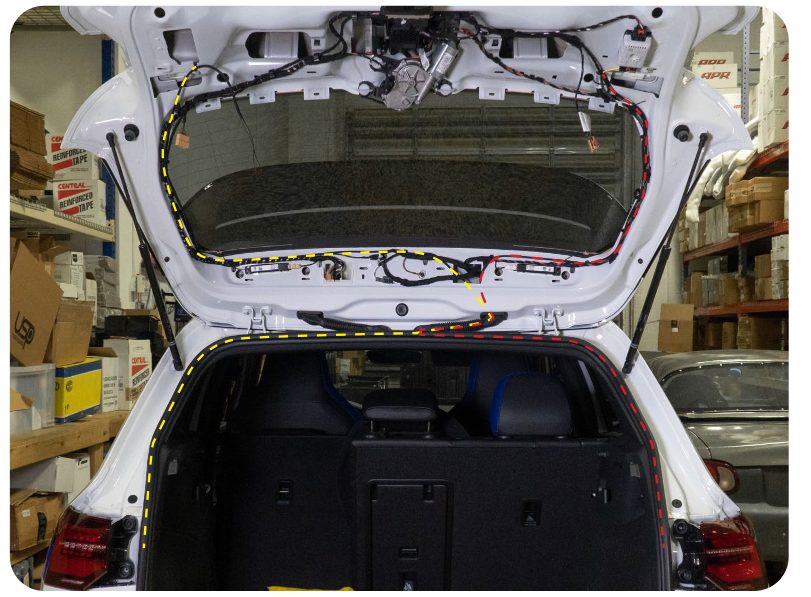

With all four lights out, you now run one black link harness per side — the 2-wire, rubber-sheathed one — from the outer light in the quarter panel across to the inner light on the hatch. Use a wire fish; don't try to push the harness through by hand. This is the slow part, roughly 40 minutes.

There are two ways to get the wire across the gap between the body and the hatch. Pick one before you start.

Option A — through the grommet

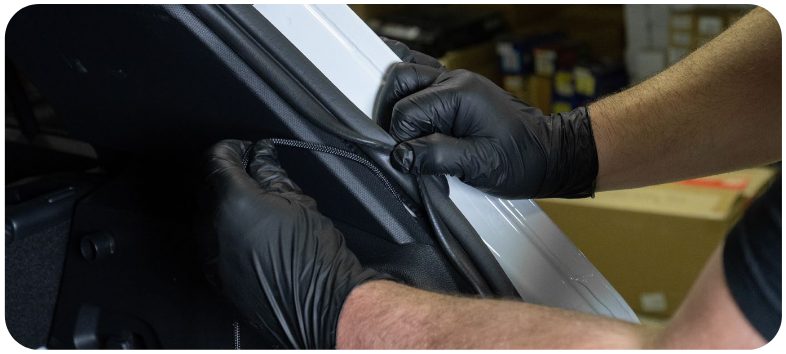

The factory route, and the one shown in the photo below and in most guides online. Lift the weather strip, route the harness from the outer tail lights through the passenger side hatch wiring loom, and on to the inner tail lights. Re-tape the loom and reinstall the grommet from outside the vehicle, making sure it is fully sealed.

Option B — through the air vent flaps

Run the wires through the air vent flaps below the grommet, behind the bumper. From inside the car you reach these behind the carpet on the side of the trunk, down near the rear bottom corners of the body — pull the carpet back on each side and they're right there. This leaves the factory grommet seal completely untouched, which is why it's the lower-risk route for a first install.

Steps 14–17 — Fit the lights and connect

About 30 minutes. Both sides.

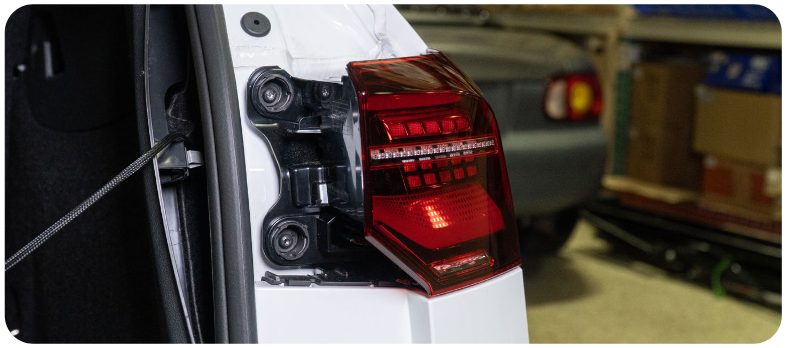

14. Fit the outer tail lights. Install them using the two T25 bolts. Leave them slightly loose at first — you'll need to tighten and align to get the light sitting flush with the body.

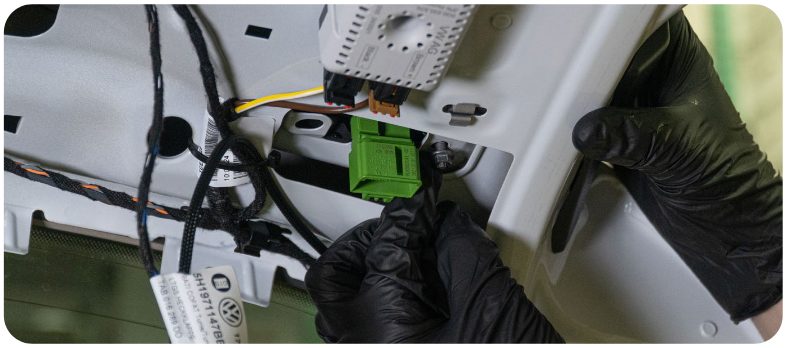

15. Fit the inner tail lights. Install them onto the hatch and tighten the 8 mm nut. Same idea: tighten and align as needed so the light sits flush with the hatch.

16. Plug everything in.

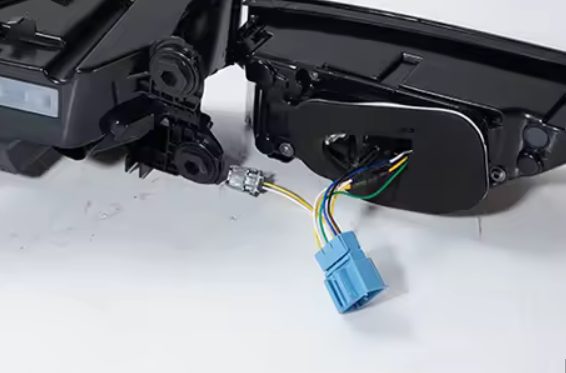

At the inner light: the black plug on the link harness goes into the matching plug coming from the light. The factory tail light plug — the one behind the hatch access cover, with the tab you trimmed in Step 2 — goes into the light as well.

At the outer light the connectors chain together in a specific order. The new light has an 8-pin connector on it and the car's factory plug is a 6-pin, so two harnesses bridge the gap:

1. Connect the 8-pin → 4-pin harness to the tail light. Its 8-pin end plugs straight into the connector on the back of the new outer light.
2. Connect the 4-pin → 6-pin harness to that. Its 4-pin end joins the 4-pin end of the first harness — the two are meant to be connected to each other, and neither reaches on its own.
3. Plug the 6-pin male end into the car — the factory 6-pin plug coming out of the quarter panel, the same one you unplugged in Step 11.
4. Plug in the black link harness. Its small black 2-pin connector mates with the matching connector on the adapter harness. This is what carries turn signal and reverse out from the inner light — miss it and the outer light will be partly dead.

17. Test now, before you close anything up. Turn the car on and check brake lights, running lights, reverse and turn signals on all four lights.

Steps 18–20 — Dynamic turn signals and reassembly

The last 35 minutes, and the part that makes the lights sweep.

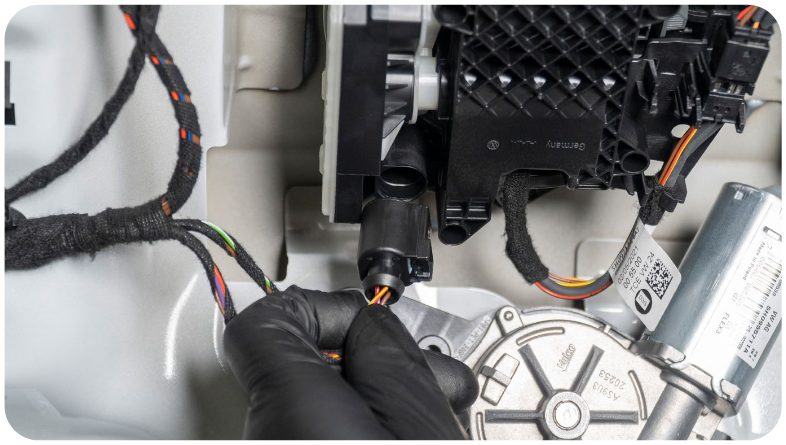

18. Disconnect the rear view camera module plug. Find the camera module inside the hatch and unplug it. This is the switched 12 V source you're going to tap.

19. Tap the sweep feed into the camera's 12 V. The grey wire on each tail light — sometimes labelled Power+ — is the sweep trigger, and it needs switched 12 V. The camera's Red/Yellow wire is that source. Using wire taps, splices and 20 AWG wire:

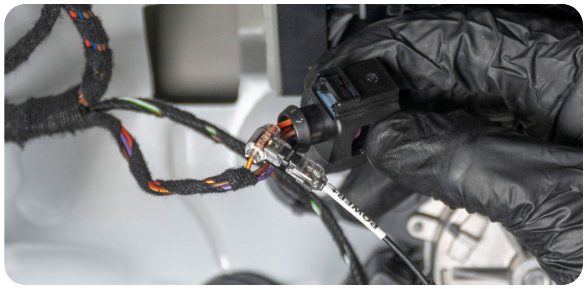

1. Tap the grey wire coming from the driver's side into the Red/Yellow wire on the rear view camera module plug. Tap it — do not cut the Red/Yellow.

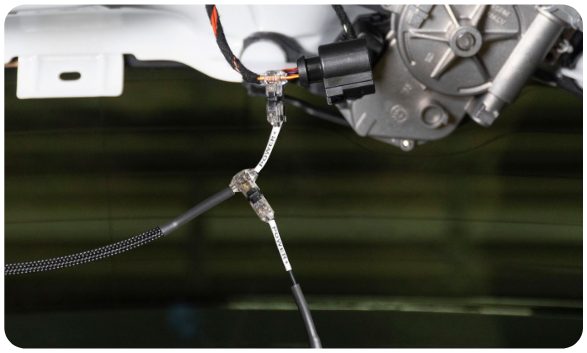

2. Tap the grey wire from the passenger's side into that same driver's side wire, as shown in the second photo. Run 20 AWG across if you need the length.

Reconnect the camera module plug when the tap is done.

20. Final test, then put it all back together. Test everything one more time — the turn signals should now sweep. Check the reverse camera still works too, since you just had its plug apart. Once you're happy, reinstall all the trim by reversing Steps 5 through 9, and reconnect both ends of the hatch wiring loom weather cover from Step 6.

Tips & common problems

Almost everything that goes wrong on this install is a connection, not a faulty light.

• Signals blink but don't sweep. The grey wires aren't seeing 12 V. Recheck the tap at the Red/Yellow camera wire — a tap that looks closed can still miss the conductor. Reseat it, or redo it as a soldered splice.
• Only one side sweeps. That's the second tap in Step 19b, the passenger's side grey wire into the driver's side lead. The driver's side is fed directly, so it works; the passenger's side only works if that jumper is making contact.
• One light is completely dead. Check all four joints in the Step 16 chain: 8-pin at the light, the 4-pin joint between the two adapter harnesses, the 6-pin into the car's factory plug, and the small 2-pin for the link harness. The 4-pin joint between the two harnesses is the one people forget.
• Reverse or turn signal missing on the outer light. Those reach the outer light only through the 2-wire black link harness. Check its small 2-pin connector, and check the harness isn't pinched anywhere along the Step 13 route. If brake and running lights work but reverse and turn don't, this harness is almost always the reason.
• The inner light plug won't seat. The centre tab on the male end wasn't fully removed in Step 2. Pull the plug back out and clean up the cut — don't force it, you'll break the latch.
• The light sits proud or isn't flush. Expected until you adjust it. Loosen the T25 bolts (outer) or the 8 mm nut (inner), push the light into position, and re-tighten while holding it flush. It usually takes two or three goes.
• Water or dust in the trunk afterwards. The grommet didn't reseal — the Option A risk from Step 13. Reseat it from outside the vehicle and re-tape the loom until the seal is complete. Don't leave this; water in the quarter panel causes bigger problems than a tail light.
• The rear view camera stopped working. Its plug was apart in Step 18 — reseat it fully first. If it's still dead, the tap may have crushed or severed the Red/Yellow conductor; remove the tap and inspect the wire.
• A bulb-out warning in the cluster. Confirm every connector from Step 16 is fully seated, since a partial connection reads as a failed lamp. This install needs no coding, so a warning that persists with everything correctly plugged in is worth a message to us before you drive on it.
