How to install MK8.5 tail lights

Fitting a EuroCustomAutos MK8.5 LED tail light set to a North American Golf — all four lights, no coding and no splicing.

Written by the EuroCustomAutos workshop — Mississauga, ON. Last updated August 2026. We fit MK8 and MK8.5 tail lights for customers across the GTA.

Read this first. This guide is specific to a EuroCustomAutos MK8.5 tail light set fitted to a North American Golf. The adapter harnesses are made by us for North American cars — other tail lights use different harnesses, so don't mix their instructions with this one. Disconnect the negative battery terminal before you touch the rear wiring, and don't drive with lighting faults active. Prefer to have it done? We'll fit it for you. Provided for information only — you work on your own vehicle at your own risk.

On an MK8 instead? The MK8 Euro set needs one extra wiring step — a 12 V tap that triggers the sweep. Use the MK8 Euro tail light guide for that car. On these MK8.5 lights the sequential function is built in, so that step doesn't exist.

FitsNorth American VW Golf MK8.5

TimeAbout 2 hours

DifficultyIntermediate — trim removal and wire fishing

CodingNone. No VCDS or OBDeleven needed.

Key toolsT25 Torx, 8 mm socket, trim pry and wedge tools, a razor blade and a wire fish

Parts to buy firstJust our MK8.5 set — the four lights, both adapter harnesses per side, and the link harnesses are all included. Nothing extra to source beyond some cloth tape.

On this page

Before you start
Tools you'll need
The wiring, explained
Steps 1–9 — Open up the hatch
Steps 10–12 — Outer lights out
Step 13 — Route the harness
Steps 14–18 — Fit, connect, finish
Tips & common problems
Prefer we do it?

Before you start

This is a plug-in job. The sequential turn signal function is built into the MK8.5 lights themselves, so there's no coding, no splicing and no tapping into the car's wiring — you fit the lights, run one harness per side, and plug everything together. What the job does need is patience with trim clips. Five things worth knowing before you open the hatch:

Read the whole guide first. Step 13 asks you to choose between two ways of routing the harness. Decide which before you start pulling trim apart.
Everything gets done twice. Unless a step says otherwise, do it on the driver's side and the passenger's side.
There's one cut. Step 2 trims a small tab off the factory plug so the new light seats. It's the only irreversible thing you do, and a replacement pigtail undoes it.
Trim clips break if you force them. Every "pop it out" step here wants steady pressure in the direction shown, not leverage.
Keep the hardware sorted. There are T25 screws and 8 mm nuts of a few different lengths — bag them per side as they come out.

The photos below are from an MK8 install. The hatch, trim, grommet and mounting hardware are the same on the MK8.5, so every step matches what you'll see on your car.

Tools you'll need

T25 Torx bit and driver — the four hatch trim screws (Step 8) and two bolts per outer tail light (Steps 11 and 14)
8 mm socket and ratchet — the inner tail light nut, one per side (Steps 3 and 15)
Trim pry tool and wedge tool — headliner clips, the grommet, the bezels and the trunk liner (Steps 5, 6, 7, 10 and 12)
Razor blade or sharp knife — trimming the centre tab off the factory plug (Step 2)
Wire fish or fish tape — pulling the link harness through the hatch (Step 13)
Cloth tape for re-taping the loom, and nitrile gloves

What's in the box

2 × inner tail lights — these mount to the hatch
2 × outer tail lights — these mount to the quarter panel
2 × adapter harness pairs — per side, one 8-pin → 4-pin harness and one 4-pin → 6-pin harness, which chain together. Custom made by us for North American cars.
2 × black link harnesses — a 2-wire harness in black rubber sheathing that carries turn signal and reverse from the inner light out to the outer light on the same side

Count everything against this list before you start. A missing harness is much easier to deal with before the car is in pieces.

The wiring, explained

Three connections make up the whole job. Understand this table and the rest is execution.

Wire / connector	Where you find it	What it does	Connects to
Factory tail light plugs 4 in total	Two behind the outer tail lights (6-pin), two behind the inner tail lights, reached through the hatch access covers	Factory power and signal for all four lights	Inner: straight into the new light, once the centre tab is trimmed (Step 2). Outer: into the 6-pin end of the adapter harness pair.
Outer adapter harness 2 pieces per side	At the quarter panel light	Steps the new light's 8-pin connector down to the car's 6-pin factory plug	Chained: 8-pin → 4-pin onto the light, then 4-pin → 6-pin onto that, then the 6-pin male end into the car's plug (Step 16)
Black link harness	Runs inner → outer on each side, through the hatch	A 2-wire harness in black rubber sheathing. Carries turn signal and reverse light signal from the inner light out to the outer light.	Black plug at the inner light end; small black 2-pin connector at the outer end, onto the matching connector on the adapter harness

There is no grey wire and no 12 V tap on this kit — the sequential turn signal is generated inside the light. Every connector is keyed and clicks when it seats; if one needs force, it's the wrong one, so count the pins before you push.

Steps 1–9 — Open up the hatch

Disconnect the negative battery terminal first. This whole phase is about getting the inner lights out and the hatch trim off so you have a clear run for the harness. Budget about 45 minutes.

Remove the two access covers. Open the rear hatch and pull off the two covers on the inside that expose the tail light plugs.

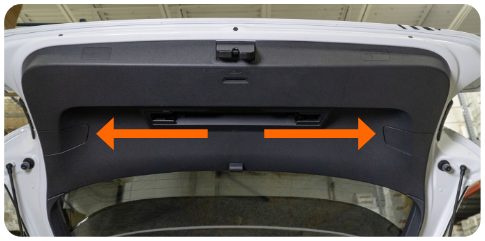

Inside of the open rear hatch of a VW Golf with arrows pointing left and right to the two tail light access covers — Both access covers, one per side.

Cut the centre tab off the tail light plug. Disconnect the plug from the tail light. With a razor blade, carefully cut off the centre tab on the male end. Do this on both the driver and passenger side plugs. Take your time — the plug still has to seat properly afterwards.

Factory VW tail light plug disconnected and resting on the hatch trim — The factory plug, disconnected.

Gloved hands holding the male end of the tail light plug with the centre tab trimmed off with a razor blade — Centre tab trimmed off the male end.

Remove the inner tail light nut. Using an 8 mm socket, remove the nut holding the inner tail light to the hatch.
Take the inner tail light out. Push it upwards first, then out and away from the hatch.

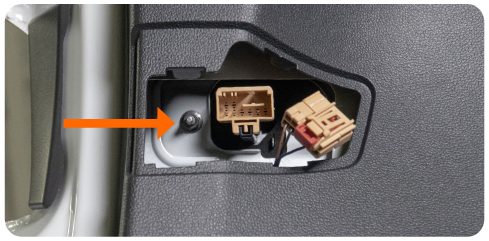

Arrow pointing to the 8mm nut holding the inner tail light, visible through the hatch access opening — One 8 mm nut per side, behind the access cover.

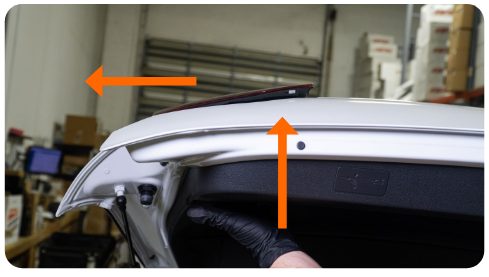

Arrows showing the inner tail light being pushed up and then outward off the hatch of a VW Golf — Up first, then out.

Release the two headliner clips. Using a pry tool or wedge tool, gently disconnect the two clips holding the headliner. This exposes the opening for the hatch wiring loom grommet.

Do not pull the headliner down with your hands. Release the clips with the tool only — hand-pulling creases the headliner and can tear the clip mounts.

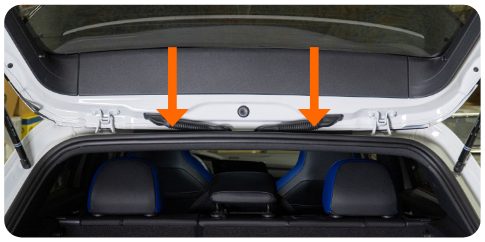

Two arrows pointing down at the headliner clip locations above the rear seats of a VW Golf — The two clip locations.

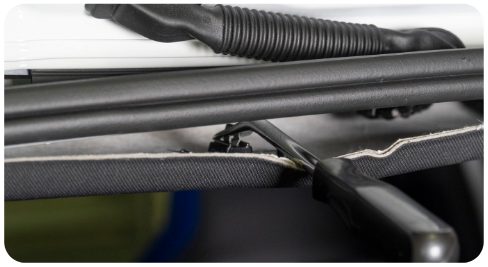

Trim pry tool inserted between the headliner and the body to release a clip — Tool in, clip released.

Pop out the hatch wiring loom grommet — passenger side only. Press in on the tab of the bottom grommet and push upwards to release it. Then press in on the tab of the top grommet and push downwards. Easy does it — too much force snaps the tab, and there's no good way to reseat a broken one.

Wedge tool pressing the release tab on the hatch wiring loom grommet — Press the tab in.

Close-up of the hatch wiring loom grommet released from its square opening — Grommet released.

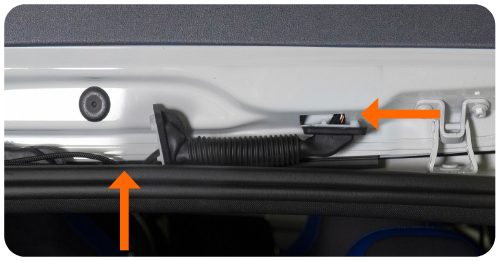

Arrows showing the bottom grommet pushed upwards and the top grommet pushed downwards — Bottom pushes up, top pushes down.

Remove the rear window trim pieces. Take off the middle piece and both side pieces that run along the rear window of the hatch, pulling evenly outwards. Even pressure across the piece — don't lever from one corner.

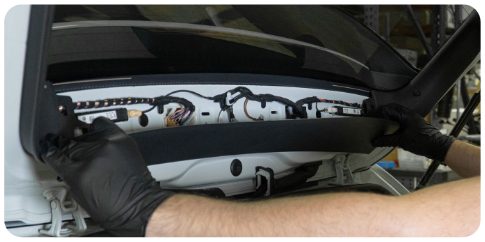

Hands pulling the middle trim piece away from the rear window of a VW Golf hatch — Middle piece first.

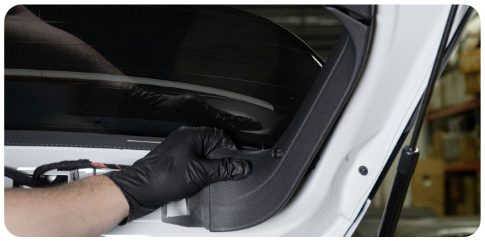

Gloved hands removing a side trim piece from the hatch of a VW Golf — Then each side piece.

Remove the four T25 screws. Using a T25, take out the four screws holding the large trim panel to the hatch.
Pull the hatch trim panel off. With the screws out, pull down along the sides of the panel to unseat all the clips, then remove it completely.

Four arrows pointing to the T25 screw locations on the hatch trim panel of a VW Golf — Four screws, arrowed.

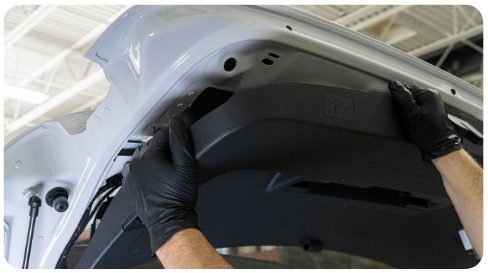

Hands pulling the hatch trim panel down and away from the hatch of a VW Golf — Work down both sides, then lift it away.

Steps 10–12 — Remove the outer tail lights

Both sides, about 25 minutes.

Pry off the tail light bezel. Gently pry the bezel away at the three locations arrowed below. Work around them in turn rather than forcing any one corner.
Remove the two T25 bolts and pull the light. Take out the two bolts holding the outer tail light in, pull the light away from the body and disconnect the plug on the back. That plug is the car's factory 6-pin — leave it where you can reach it, because the adapter harness plugs back into it in Step 16.
Pull the trunk liner off its three metal tabs. Using a tool as a wedge for your fingers, carefully pull back on the liner until it releases from the three metal tabs. This is what gives you access to fish the wiring through.

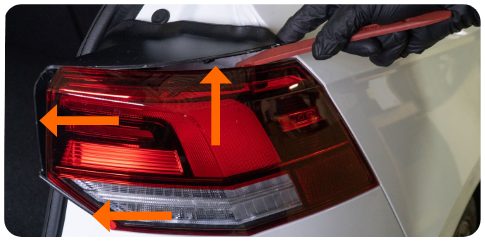

Pry tool at the outer tail light bezel of a VW Golf with three arrows marking the release points — Three release points on the bezel.

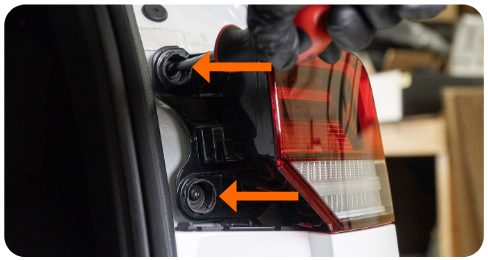

Two arrows pointing to the T25 bolts behind the outer tail light of a VW Golf — Two T25 bolts per side.

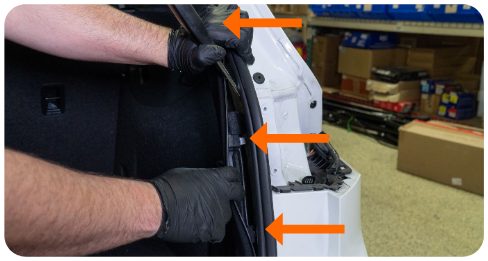

Hands using a wedge tool to pull the trunk liner back, with three arrows marking the metal tabs — Three metal tabs along the edge.

Step 13 — Route the link harness

With all four lights out, you now run one black link harness per side — the 2-wire, rubber-sheathed one — from the outer light in the quarter panel across to the inner light on the hatch. Use a wire fish; don't try to push the harness through by hand. This is the slow part, roughly 40 minutes.

There are two ways to get the wire across the gap between the body and the hatch. Pick one before you start.

Option A — through the grommet

The factory route, and the one shown in the photo below and in most guides online. Lift the weather strip, route the harness from the outer tail lights through the passenger side hatch wiring loom, and on to the inner tail lights. Re-tape the loom and reinstall the grommet from outside the vehicle, making sure it is fully sealed.

Option A risk. In inexperienced hands this method can damage the grommet and break the waterproof seal around the wires and connectors. If you aren't confident you can get the grommet fully reseated, use Option B.

Option B — through the air vent flaps

Run the wires through the air vent flaps below the grommet, behind the bumper. From inside the car you reach these behind the carpet on the side of the trunk, down near the rear bottom corners of the body — pull the carpet back on each side and they're right there. This leaves the factory grommet seal completely untouched, which is why it's the lower-risk route for a first install.

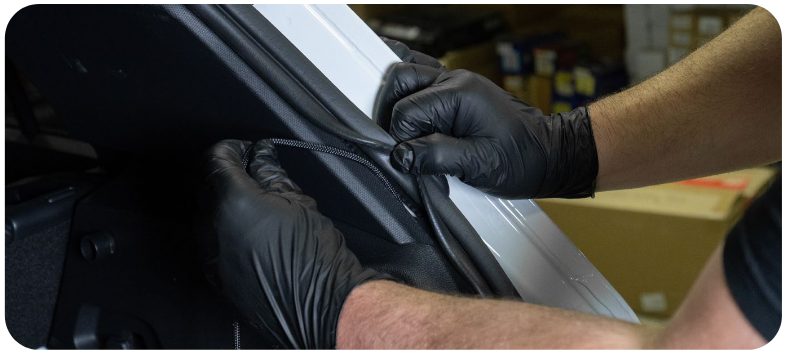

Gloved hands lifting the weather strip to route the tail light harness through the hatch wiring loom on a VW Golf — Option A: lifting the weather strip to route the harness through the passenger side loom.

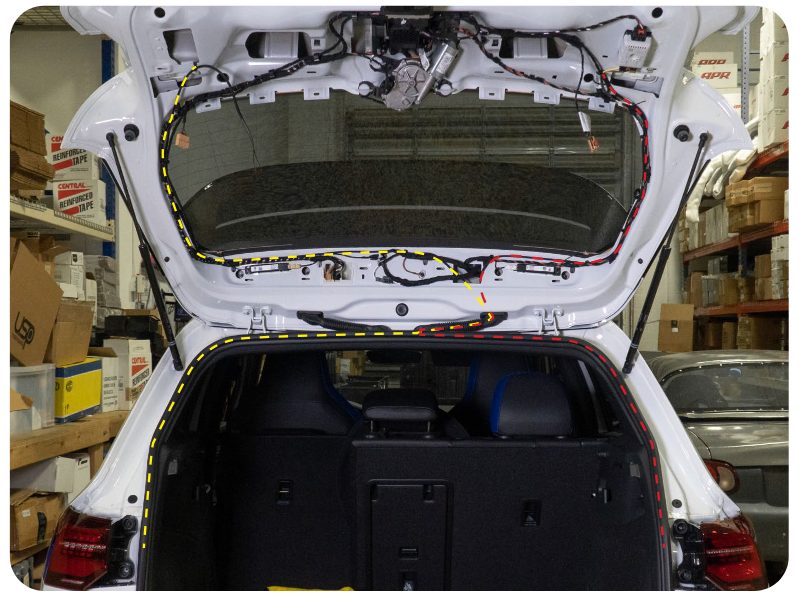

Rear of a VW Golf with dashed yellow and red lines tracing the harness route from the quarter panel tail lights up through the hatch to the inner tail lights — Overall routing. Yellow traces the driver's side run and red the passenger's side, from the outer lights up and across into the hatch.

Steps 14–18 — Fit the lights, connect and finish

The last 30 minutes. Both sides.

Fit the outer tail lights. Install them using the two T25 bolts. Leave them slightly loose at first — you'll need to tighten and align to get the light sitting flush with the body.
Fit the inner tail lights. Install them onto the hatch and tighten the 8 mm nut. Same idea: tighten and align as needed so the light sits flush with the hatch.

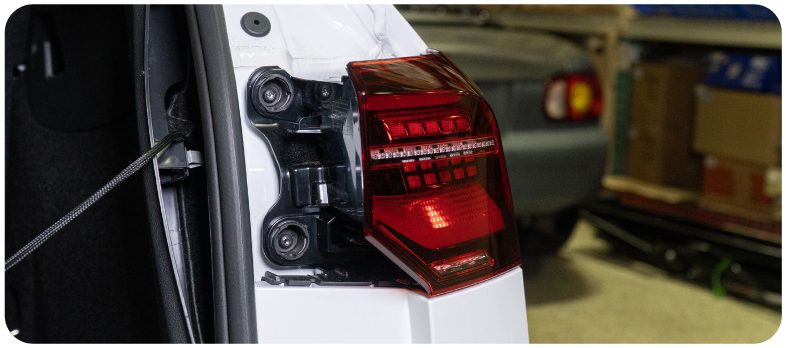

New LED outer tail light being offered up to the quarter panel of a VW Golf with the two bolt bosses visible — Align, then tighten. Flush is the goal.

Gloved hands seating the new inner tail light on the hatch of a VW Golf with the connector visible through the opening — Inner light seated on the hatch, connector reachable through the opening.

16. Plug everything in.

At the inner light: the black plug on the link harness goes into the matching plug coming from the light. The factory tail light plug — the one behind the hatch access cover, with the tab you trimmed in Step 2 — goes into the light as well.

At the outer light the connectors chain together in a specific order. The new light has an 8-pin connector on it and the car's factory plug is a 6-pin, so two harnesses bridge the gap:

Connect the 8-pin → 4-pin harness to the tail light. Its 8-pin end plugs straight into the connector on the back of the new outer light.
Connect the 4-pin → 6-pin harness to that. Its 4-pin end joins the 4-pin end of the first harness — the two are meant to be connected to each other, and neither reaches on its own.
Plug the 6-pin male end into the car — the factory 6-pin plug coming out of the quarter panel, the same one you unplugged in Step 11.
Plug in the black link harness. Its small black 2-pin connector mates with the matching connector on the adapter harness. This is what carries turn signal and reverse out from the inner light — miss it and the outer light will be partly dead.

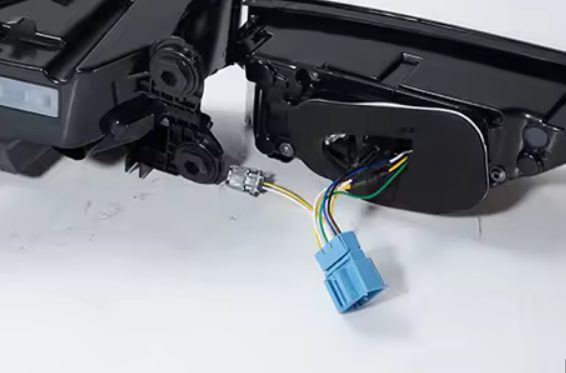

Tail light pigtail showing the blue connector and the small secondary connector before plugging in — Light-side connectors. Count the pins before you mate anything — every plug is keyed and clicks when it's home.

17. Test everything before you close up. Turn the car on and check brake lights, running lights, reverse and turn signals on all four lights.

Everything should work now — including the sweep. The sequential turn signal is generated inside the MK8.5 lights, so it works the moment the lights are correctly plugged in. There's no extra wiring step waiting. If the signals blink without sweeping, or anything else is dead, that's a connection problem — fix it now while the trim is still off.

18. Put it all back together. Once every function checks out, reinstall all the trim by reversing Steps 5 through 9, and reconnect both ends of the hatch wiring loom weather cover from Step 6.

Last check. Before the final trim panel goes on, make sure no harness is pinched under a clip or trapped where the hatch closes.

Tips & common problems

With no splicing and no coding on this kit, essentially everything that goes wrong is a connection.

Signals blink but don't sweep. On MK8.5 lights the sweep is built in, so this points at the light not being fully powered or fully seated rather than at missing wiring. Recheck all four joints in the Step 16 chain and make sure each one clicked home.
One light is completely dead. Check all four joints in the Step 16 chain: 8-pin at the light, the 4-pin joint between the two adapter harnesses, the 6-pin into the car's factory plug, and the small 2-pin for the link harness. The 4-pin joint between the two harnesses is the one people forget.
Reverse or turn signal missing on the outer light. Those reach the outer light only through the 2-wire black link harness. Check its small 2-pin connector, and check the harness isn't pinched anywhere along the Step 13 route. If brake and running lights work but reverse and turn don't, this harness is almost always the reason.
The inner light plug won't seat. The centre tab on the male end wasn't fully removed in Step 2. Pull the plug back out and clean up the cut — don't force it, you'll break the latch.
The light sits proud or isn't flush. Expected until you adjust it. Loosen the T25 bolts (outer) or the 8 mm nut (inner), push the light into position, and re-tighten while holding it flush. It usually takes two or three goes.
Water or dust in the trunk afterwards. The grommet didn't reseal — the Option A risk from Step 13. Reseat it from outside the vehicle and re-tape the loom until the seal is complete. Don't leave this; water in the quarter panel causes bigger problems than a tail light.
A bulb-out warning in the cluster. Confirm every connector from Step 16 is fully seated, since a partial connection reads as a failed lamp. This install needs no coding, so a warning that persists with everything correctly plugged in is worth a message to us before you drive on it.
Following an MK8 guide by mistake. If you've read about tapping a grey wire into the rear view camera's 12 V feed, that's the MK8 Euro set, not this one. Don't tap anything on an MK8.5 install.

Rather not DIY it? We fit MK8 and MK8.5 tail lights in-house in Mississauga. Grab a set of our MK8.5 tail lights or MK8 tail lights, or send us your car for a quote. We ship across Canada and the US.
